Magswitch MLAY 1000×3 Lifting Magnet – 8100403

Description

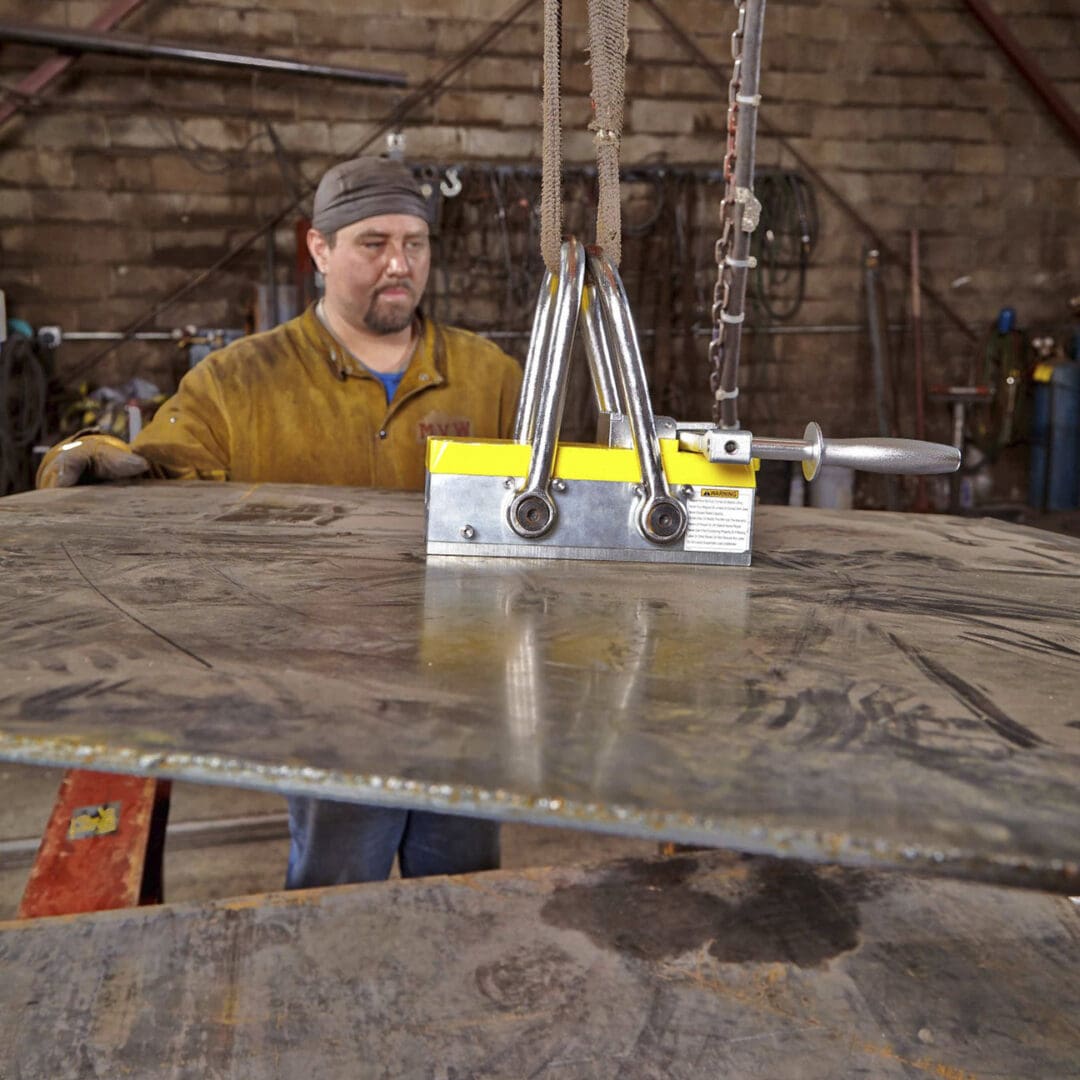

Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 913 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.



FEATURES & BENEFITS

Magnetic field turns completely on and off mechanically.

Magnet stays clean.

Does not use an electrical power source.

Lock On/Off handle.

Superior hold force on Thin steel (70mm deep field).

Compact, lightweight and easy actuation.

Lifts large flat sheets, beams, pipe.

Performs well on air gaps such as rust and dirt.

Customizable pole shoes to fit almost any application.





SPECIFICATIONS

Max Breakaway: 2738 lbs (1242 kg) on 2” steel

3:1 Safe Working Load: 913 lbs (414.1 kg)

2:1 Shear Working Load: 198 lbs (89.8 kg)

Full Saturation Thickness: 0.75 in (19 mm)

Minimum Thickness for De-Stack: 0.75 in (19 mm)

Product Weight: 36.5 lbs (16.5 kg)

Mounting Thread: M8 x 1.25

Dimensions: 10.7 x 7.7 x 10.4 in (271.7 x 195.5 x 264.1 mm)

Magnetic Pole Footprint: 255 mm x 97.6 mm
