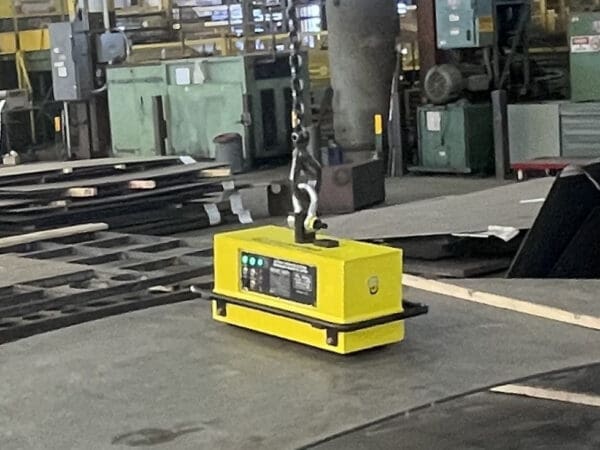

Cordless Electric (CE) 6600 Magnetic Lifter – 8140979

Description

Magswitch heavy-lifting cordless electric (CE) Magnetic Lifters are the new generation of SPM battery magnets.



Lifting Device Features

Great for most of your thick and heavy plate lifting needs.

Whether it is a short or long plate, the power of the CE 6600 can handle most applications with the use of just one magnet.

Automatic on/off actuation when landing and placing the workpiece in AUTO mode.

3:1 safety factor.

Fails safe – no power required once actuated.

300 operation cycles before recharging 8h by the power supply of 110V / 230V.

Variable Flux Output (VFO) for de-stacking (1/4in min)l

On tool button

IMPORTANT note ASME B30.20 standards take precedence over all data provided. We strongly advise operators to be familiar with this standard prior to using any underhook lifter.



Specifications

Maximum Breakaway Force 1,2: 19800lb / 9000 kg

Breakaway Force @ SWL 3:1: 6600lb / 3000kg

Minimum Thickness for De-Stacking3 – VFO capable: Level 1: 1/4in / 6mm, Level 2: 5/16in / 8mm, Level 3: 13/32in / 10mm

Charging Supply Voltage: 110V/230V

Charging Time: 8 hours

Number of Cycles per Charge: 300

Net Weight: 418lb / 190kg

Mounting Option: Single Hoist Ring

Hold Surface (L x W): 22.8in x 8.7in

Max Temp 176° Fahrenheit (80° Celsius)

Dimensions (L x W x H): 22in x 13.4in x 19.6in
