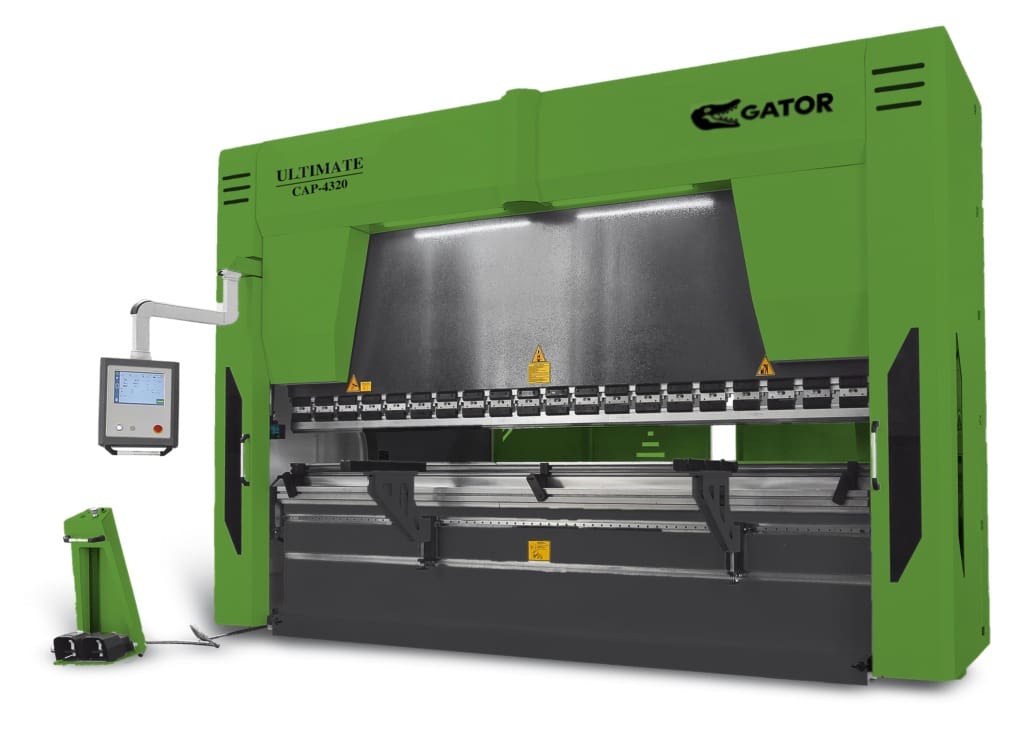

ULTIMATE CNC HYDRAULIC PRESS BRAKES

Description

STANDARD FEATURES• Y1, Y2, X – 3 Axis Control (additional axis upon request)

• Bending Force: 60 tons through 660 tons

• Bending Length: 63” through 240”

• Delem 66S Series 2D Modular Control

• HD ±0.0012” Accuracy Servo Motor B. Gauge

• Front Safety Laser: German Fiessler

• Back Safety Finger Protection System: Fiessler or Datalogic

• Finger Blocks: 2 Pcs

• Adj. Lin. Slide Bdy. Fr. Sup. Arms: 2 Pcs

• Special Narrow Table • Bottom Tool Holder

• Eu. Type Top Tool Clamping: Promecam

• Eu. Type Top Tool: H: 2.50” 85° R0.8 (Rolleri or Eurostamp)

• European Type Bottom Tool: 4V H: 2-3/8” x 2-3/8” 85° (Rolleri or Eurostamp)

• Opkon Magnetic Linear Scale • Electrical System: Siemens or Schneider

• Hydraulic System: German Hoerbiger/Hawe

• Hydraulic Pump: Italian Eckerle

• Servo Driver: Delta or Mitsubishi

• Electrical Panel: Gator

• Top illuminated

• Foot Pedal with Em. Stop Button: Stand Type

• Stroke Length: 14.4”

• Throat Depth: 34”

• Back Gauge X-Axis Distance: 30”

• Daylight: 23”

• R Axis Travel: 7.88”
