Cordless Electric (CE) 2100 Magnetic Lifter – 8140978

Description

Magswitch heavy-lifting cordless electric (CE) Magnetic Lifters are the new generation of SPM battery magnets.



Lifting Device Features

With 2100LBS at a 3:1 safe working load, the CE2100 covers a broad range of lifting applications around most shops.

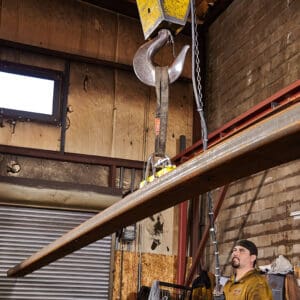

This magnet is not only great for plates but also for handling square and round tubing.

Automatic on/off actuation when landing and placing the workpiece in AUTO mode.

3:1 safety factor.

Fails safe – no power required once actuated.

400 operation cycles before recharging 8h by the power supply of 110V / 230V.

Variable Flux Output (VFO) for de-stacking (1/4in min)

On tool button

IMPORTANT note ASME B30.20 standards take precedence over all data provided. We strongly advise operators to be familiar with this standard prior to using any underhook lifter.



Specifications

Maximum Breakaway Force 1,2: 6300lb / 2850 kg

Breakaway Force @ SWL 3:1: 2100lb / 950kg

Minimum Thickness for De-Stacking3 – VFO capable: Level 1: 1/4in / 6mm, Level 2: 5/16in / 8mm, Level 3: 13/32in / 10mm

Charging Supply Voltage: 110V/230V

Charging Time: 8 hours

Number of Cycles per Charge: 400

Net Weight: 90lb / 41kg

Mounting Option: Single Hoist Ring

Hold Surface (L x W): 12.1in x 4.7in

Max Temp 176° Fahrenheit (80° Celsius)

Dimensions (L x W x H): 14in x 6.5in x 6.7in
